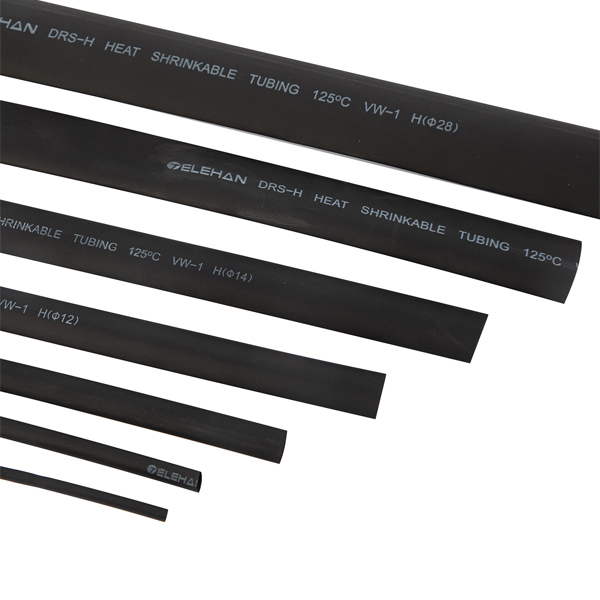

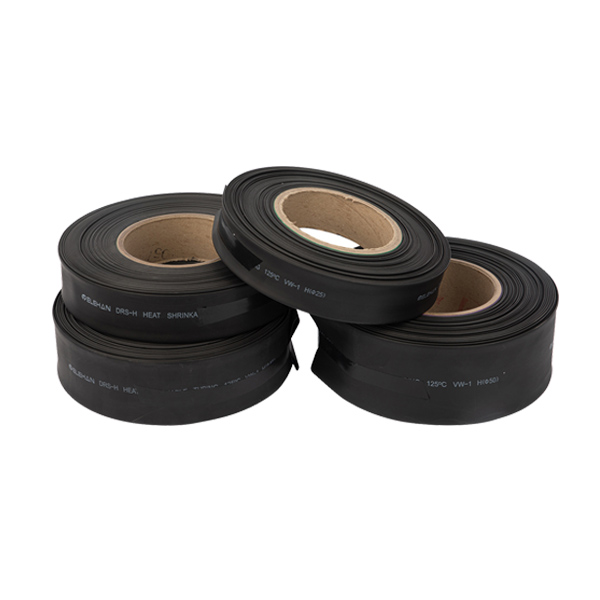

Single Wall Sleeves,Single Wall Tubing
High-Temperature Resistance:
This Heat Shrink Tube offers excellent physic chemical and electrical performance, ensuring reliable insulation protection for electrical applications. it can withstand continuous operating temperatures between -40°C and 125°C, making it suitable for demanding environments.
Waterproofing Capability:
The PE material used in this product provides a waterproof seal, ensuring the safety and integrity of electrical connections in humid or wet conditions. This is particularly beneficial for users working with electrical components in harsh environments.
Easy to Apply:
The Heat Shrink Tube has a shrink ratio of 2:1, allowing for a snug fit on bus bars and other electrical components. This simplistic the application process, reducing the risk of errors and ensuring a secure seal.
Customization Options:

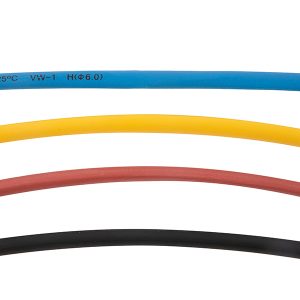

This product is available in various colors, including standard red, yellow, and green, and other colors can be requested by the user. This flexibility makes it easy for users to match the Heat Shrink Tube to their specific requirements.
Physical Performance（Table 1）:
| Performance | Index | Standard |
| Tensile Strength(MPa) | ≥8.0 | GB/T 1040 |
| Broken Egogation(%) | ≥300 | GB/T 1040 |
| Tensile Stength After Heat Aging(MPa) | ≥6.4 | GB/T 1040 GB/T 7141 |
| Broken Egongation After Heat Aging(MPa) | ≥240 | GB/T 1040 GB/T 7141 |
| Radial Shrinkage Ratio(%) | ≥50 | ASTM D2671 |
| Axial Shrinkage Ratio (%) | ±10 | ASTM D2671 |
| Deviation Ration (%) | ≤30 | UL 224 |
| Thermal Shock(160℃,4H) | No Cracking No Flowing | JB7829 |
| Low Temperature Resistence (≤-40℃) | No Cracking | |
| Flame Retardant Test (Oxygen index 0.1) | ≥28 | GB/T 2406 |
| Power Frequency Voltage Withstand (KV/mm2) | See Table 2 | GB/T 3048.8, DL/T1059 |
| Lighting Breakdown(KV/mm2) | See Table 2 | GB/T 3048.8, DL/T1059 |
| Breakdown Strength(KV/mm2) | ≥20 | GB/T1048.1 |
| Volume Resistivity(Ohm.cm) | ≥4.3x | GB/T 1410 |
| Hardness(A) | ≤90 | GB/T 2411 |
Electric Performance(Table 2):
| Part No. | Items | Unit | Index | |||
| 1KV | 10KV | 20KV | 35KV | |||
| 1 | Power Frequency Voltage Withstand (KV/mm2) | KV | 2 | 42 | 50 | 95 |
| 2 | Lighting Breakdown (KV/mm2) | KV | 4 | 75 | 95 | 185 |
Size and Specification:
| Size | Bus Bar Suitable (mm) | Before Shrinked (mm) | After Shrinked (mm) | PACKED (M/Roll) | |||
| Round(A) | Sqare(L+B) | Inner Dia. | Wall thickness | Inner Dia. | Wall thickness | ||
| 0.5 | / | / | 0.8±0.2 | 0.18±0.05 | ≤0.30 | 0.33±0.10 | 400 |
| 0.6 | / | / | 0.9±0.2 | 0.18±0.05 | ≤0.40 | 0.33±0.10 | 400 |
| 0.8 | / | / | 1.1±0.2 | 0.18±0.05 | ≤0.50 | 0.33±0.10 | 400 |
| 1.0 | / | / | 1.5±0.2 | 0.20±0.05 | ≤0.65 | 0.36±0.10 | 400 |
| 1.5 | / | / | 2.0±0.2 | 0.20±0.05 | ≤0.85 | 0.36±0.10 | 400 |
| 2.0 | / | / | 2.5±0.2 | 0.20±0.05 | ≤1.00 | 0.45±0.10 | 400 |
| 2.5 | / | / | 3.0±0.2 | 0.20±0.05 | ≤1.30 | 0.45±0.10 | 400 |
| 3.0 | / | / | 3.5±0.2 | 0.20±0.05 | ≤1.50 | 0.45±0.10 | 400 |
| 3.5 | / | / | 4.0±0.2 | 0.23±0.05 | ≤1.80 | 0.45±0.10 | 400 |
| 4.0 | / | / | 4.7±0.2 | 0.25±0.05 | ≤2.00 | 0.45±0.10 | 400 |
| 4.5 | / | / | 5.0±0.2 | 0.28±0.05 | ≤2.30 | 0.56±0.10 | 200 |
| 5.0 | / | / | 5.5±0.2 | 0.28±0.05 | ≤2.50 | 0.56±0.10 | 200 |
| 5.5 | / | / | 6.0±0.2 | 0.28±0.05 | ≤2.80 | 0.56±0.10 | 200 |
| 6.0 | / | / | 6.5±0.2 | 0.28±0.05 | ≤3.00 | 0.56±0.10 | 200 |
| 7.0 | / | / | 7.5±0.3 | 0.30±0.05 | ≤3.50 | 0.56±0.10 | 100 |
| 8.0 | / | / | 8.5±0.3 | 0.30±0.08 | ≤4.00 | 0.56±0.10 | 100 |
| 9.0 | / | / | 9.5±0.3 | 0.30±0.08 | ≤4.50 | 0.56±0.10 | 100 |
| 10 | / | / | 10.5±0.3 | 0.30±0.08 | ≤5.00 | 0.56±0.10 | 100 |
| 11 | / | / | 11.5±0.3 | 0.30±0.08 | ≤5.50 | 0.56±0.10 | 100 |
| 12 | / | / | 12.5±0.3 | 0.30±0.08 | ≤6.00 | 0.56±0.10 | 100 |
| 13 | / | / | 13.5±0.3 | 0.35±0.08 | ≤6.50 | 0.56±0.10 | 100 |
| 14 | / | / | 14.5±0.3 | 0.35±0.10 | ≤7.00 | 0.70±0.10 | 100 |
| 15 | / | / | 15.5±0.4 | 0.35±0.10 | ≤7.50 | 0.70±0.10 | 100 |
| 16 | / | / | 16.5±0.4 | 0.35±0.10 | ≤8.00 | 0.70±0.10 | 100 |
| 17 | / | / | 17.5±0.4 | 0.35±0.10 | ≤8.50 | 0.70±0.10 | 100 |
| 18 | / | / | 19.0±0.5 | 0.35±0.10 | ≤9.00 | 0.70±0.10 | 100 |
| 20 | / | / | 22.0±0.5 | 0.40±0.10 | ≤10.00 | 0.83±0.10 | 100 |
| 22 | / | / | 24.0±0.5 | 0.40±0.12 | ≤11.00 | 0.83±0.15 | 100 |
| 25 | / | / | 26.0±0.5 | 0.45±0.12 | ≤12.50 | 0.90±0.15 | 50 |
| 28 | / | / | 29.0±0.5 | 0.45±0.12 | ≤14.00 | 0.90±0.15 | 50 |
| 30 | 16-25 | 25-40 | 31.5±1.0 | 0.45±0.12 | ≤15.0 | 0.95±0.15 | 50 |
| 35 | 20-29 | 30-45 | 36.5±1.0 | 0.45±0.12 | ≤18.0 | 0.95±0.15 | 50 |
| 40 | 22-34 | 35-55 | 41.5±1.0 | 0.50±0.12 | ≤20.0 | 0.95±0.15 | 50 |
| 45 | 25-38 | 40-60 | 46.5±1.0 | 0.50±0.15 | ≤23.0 | 1.0±0.15 | 25 |
| 50 | 27-42 | 45-65 | 52.0±2.0 | 0.50±0.15 | ≤25.0 | 1.0±0.15 | 25 |
| 60 | 33-51 | 50-80 | 62.0±3.0 | 0.55±0.20 | ≤30.0 | 1.0±0.20 | 25 |
| 65 | 36-55 | 55-85 | 67.0±3.0 | 0.55±0.20 | ≤33.0 | 1.0±0.20 | 25 |
| 70 | 38-59 | 60-90 | 72.0±3.0 | 0.55±0.20 | ≤35.0 | 1.0±0.20 | 25 |
| 75 | 42-63 | 65-95 | 77.0±3.0 | 0.55±0.20 | ≤38.0 | 1.15±0.20 | 25 |
| 80 | 44-68 | 70-105 | 82.0±3.0 | 0.55±0.20 | ≤40.0 | 1.20±0.20 | 25 |
| 85 | 47-62 | 75-110 | 87.0±3.0 | 0.55±0.20 | ≤43.0 | 1.20±0.20 | 25 |
| 90 | 50-76 | 80-115 | 92.0±3.0 | 0.55±0.20 | ≤45.0 | 1.20±0.20 | 25 |
| 100 | 55-85 | 85-130 | 102.0±3.0 | 0.60±0.20 | ≤50.0 | 1.20±0.20 | 25 |
| 120 | 66-102 | 105-160 | 122.0±3.0 | 0.65±0.20 | ≤60.0 | 1.30±0.20 | 25 |
| 150 | 83-125 | 130-195 | 153.0±4.0 | 0.65±0.20 | ≤75.0 | 1.30±0.20 | 25 |
| 180 | 100-150 | 155-235 | 183.0±4.0 | 0.70±0.20 | ≤90.0 | 1.46±0.20 | 25 |
| 210 | 115-175 | 180-280 | 215.0±4.0 | 0.70±0.20 | ≤105.0 | 1.46±0.20 | 25 |
| 230 | 125-195 | 215-300 | 235.0±4.0 | 0.70±0.20 | ≤115.0 | 1.46±0.20 | 25 |
| 250 | 135-210 | 210-320 | 255.0±4.0 | 0.70±0.20 | ≤125.0 | 1.46±0.20 | 25 |
